| Plaats van herkomst: | China |
|---|---|
| Merknaam: | YIZGEAR |
| Min. bestelaantal: | 1 set |
| Verpakking Details: | Kist van triplex |
| Levertijd: | 30 dagen |
| Betalingscondities: | L/C, T/T |
| Levering vermogen: | 500 Reeksen/Maand |
| Lattype: | Rechtehoekige spleen | Herdheid: | 220-260 HB |
|---|---|---|---|
| Productietype: | Toestel het Malen | Productietijd: | 30 dagen |
| Metode: | Toestel het Hobbing | DIMENSIE: | Als monster of tekening |

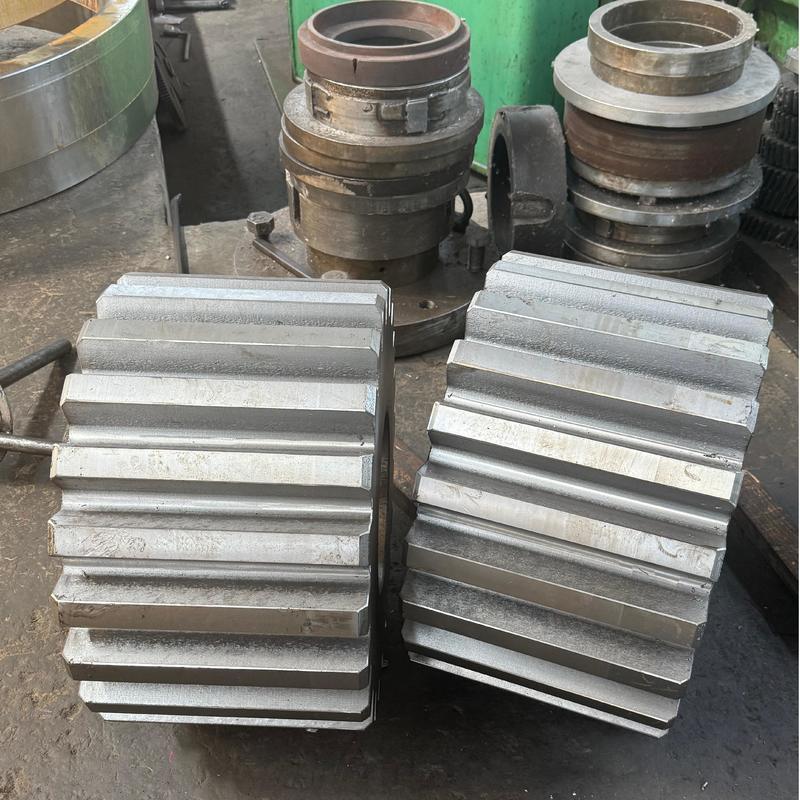

| Markeren: | custom spur gears with rectangular spline,hardened spur gears 220-260 HB,transmission gears with rectangular spline |
||
| Spline Type | Rectangular spline |
| Hardness | 220-260 HB |
| Manufacturing Type | Gear Grinding |
| Production Time | 30 Days |
| Method | Gear Hobbing |
| Dimension | As sample or drawing |
Spur gears are cylindrical gears with teeth parallel to the axis, and the teeth are distributed along the busbar direction of the cylinder, which is one of the most basic and common types of gear transmission.
When the active spur gear rotates, its teeth mesh with the teeth of the driven spur gear in turn, transmitting torque from the driving shaft to the driven shaft through the thrust between the tooth surfaces.
Ideal for equipment requiring simple transmission structure, including:
| Custom Made | ✓ |
| Gear Profile Type | Cylindrical Gears |
| Manufacturing | Gear Hobbing |
| Teeth Grinding | ✓ |
| Module (M) | Custom |
| Number of Teeth (Z) | Custom |
| Pressure Angle (α) | Custom |
| Helix Angle (β) | 0° |
| Accuracy Grade | ISO 6-7 Grade |
| Heat Treatment | Carburizing |
| Surface Hardness | 58-62 HRC |
| CHINA/GB | ISO | ГOCT | ASTM | JIS | DIN |
|---|---|---|---|---|---|
| 45 | C45E4 | 45 | 1045 | S45C | CK45 |
| 40Cr | 41Cr4 | 40X | 5140 | SCr440 | 41Cr4 |
| 20CrMo | 18CrMo4 | 20ХМ | 4118 | SCM22 | 25CrMo4 |
| 42CrMo | 42CrMo4 | 38XM | 4140 | SCM440 | 42CrMo4 |
| 20CrMnTi | 18XГT | SMK22 | |||
| 20Cr2Ni4 | 20X2H4A | ||||
| 20CrNiMo | 20CrNiMo2 | 20XHM | 8720 | SNCM220 | 21NiCrMo2 |
| 40CrNiMoA | 40XH2MA/40XHMA | 4340 | SNCM439 | 40NiCrMo6/36NiCrMo4 | |
| 20CrNi2Mo | 20NiCrMo7 | 20XH2MA | 4320 | SNCM420 |
